Full Color Stadium LED Display Waterproof P10mm with CCC CE Certification
Detail of Indoor Stadium LED Display:
1. Size customized;
2. Light 40Kg/㎡;
3. 140°H/V;
4. Low attenuation;
5. Good ventilation;
6. Noiseless;
7. Steel and durable cabinet;
8. HD perfect display performance;
9. Long life time;
10.Easy to install.
Feature of Indoor Stadium LED Display:
1. Flat screen:
smooth surface error is under 0.2cm, it can remove the mosaic phenomenon effectively. The effect of the display will be more clear and exquisite.
2. Low release heat:
Low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
3. Concave and convex setup support:
Client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.
4. Smart module: no repeated calibration is required after the replacement of the dysfunctional modules, the new module could automatically load the specifications of brightness, color temperature, etc, from the neighboring modules that have been pre-set with correct data, so any newly replaced module could deliver as perfectly correct color and brightness as the other modules do.
5. Front and rear service: all the components can be effortlessly serviced both from front and rear.
6. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.
7. High contrast ratio and good evenness, high uniformity,without mosaic.
Our product pixel pitch including P4/P6/P8/P10/P12mm, main parameters of P6/8mm product as follows:
| Pixel pitch (mm) | 6 | 8 |
| Cabinet size (mm) | 768×768x135 | 1024x1024x135 |
| Brightness (nit) | 1500~3500 | 1500~3500 |
| Module size (mm) | 192×96 | 256×128 |
| Pixel configuration (R,G,B) | 1,1,1 | 1,1,1 |
| Viewing distance (Min) (m) | 8m-50m | 10m-80m |
| Gray scale (level) | 14bit | 14bit |
| Refresh frequency (Hz) | 2000Hz + | 2000Hz + |
| Viewing angle-H (deg.) | 140 (+5/-5) | 140 (+5/-5) |
| Viewing angle-V (deg.) | 140 (+5/-5) | 140 (+5/-5) |
| Ingress protection (front/rear) | IP65/IP65 | IP65/IP65 |
| Input voltage (AC) | 110 ~ 240 | 110 ~ 240 |
| Signal input format (with video processor) | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Operating system | Windows (2000/XP/Vista/7/8) | Windows (2000/XP/Vista/7/8) |
| Control distance | CAT5 cable:<100 m; Single fiber:<10 km | CAT5 cable:<100 m; Single fiber:<10 km |
Product Tags:
|
|

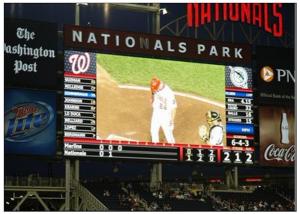

IP65 Full Color P10mm Stadium Perimeter LED Display Images
|
